Pilot units are the intermediate link between laboratory and industrial scale distillation units. The main aim of pilot scale distillations is to generate data for scale-up and process development. Moreover our pilot systems can be used for production of small product quantities as well. Experience, gained by experiments with a variety of products on our own pilot plants, has influenced the design and continuously improves the quality and performance of our systems.
Verification of the results of the laboratory tests under real process conditions
Determination of design parameters for a future industrial scale distillation system
Scale-up for process equipment and aggregates of the industrial plant
Monitoring of product properties during distillation (color, foaming, fouling etc.)
Production of samples up to several metric tons
Required raw material quantities about 20 - 400 kg
MOC of evaporator: stainless steel

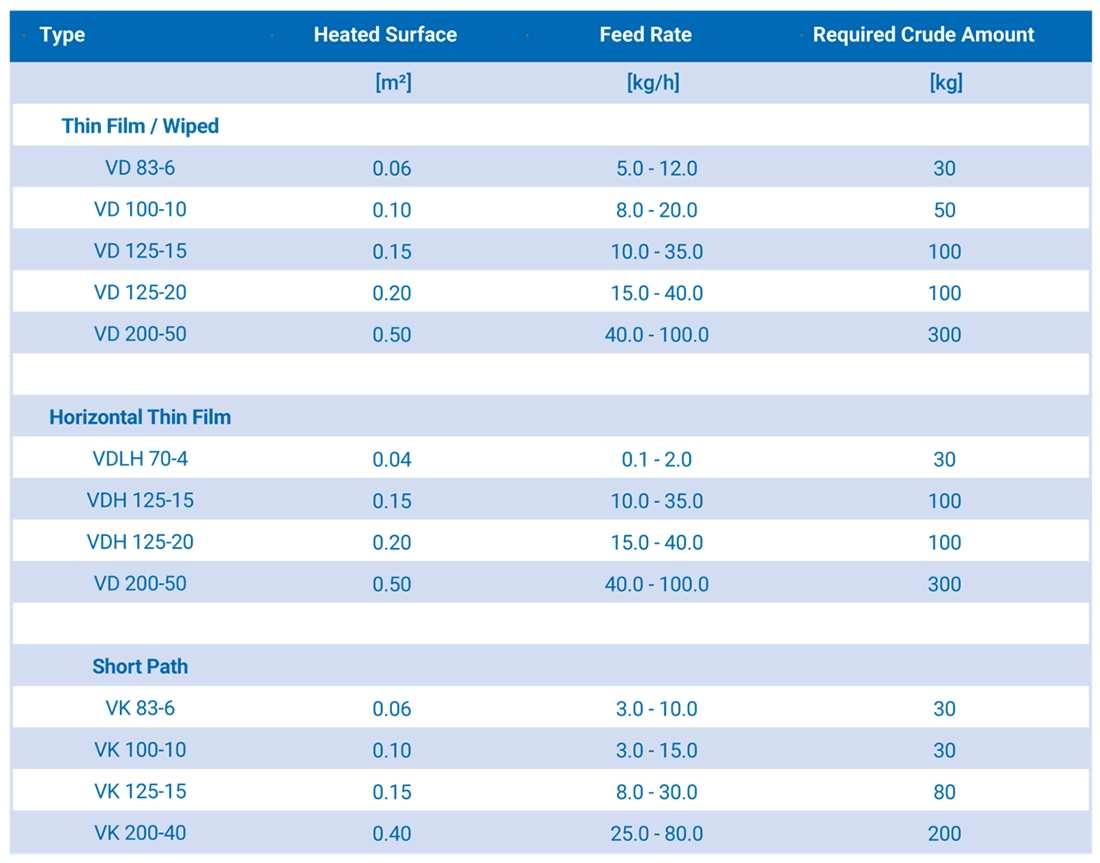

Standard Set-up
Larger evaporators on request
The design of our distillation systems is based on our customers´ requirements and product properties.
The following options can be considered for our tailor-made systems:
Interested in VTA pilot scale solutions?
We are looking forward to develop a suitable concept with you.
